    Bulk Milk Cooler

    Bulk Milk Cooler 300/ 500/1000 LTR



    Description

    ( 300 LTR/ 500 LTR/ 1000 LTR )

    Rated capacity 300 LTR/ 500 LTR/ 1000 LTR
    Gross Capacity 350 LTR/ 550LTR/ 1100 LTR
    Cooling Capacity(Kcl/hour) 2520/2520/5310
    Thermo Plate Imported
    Construction material AISI 304 SS
    S. Thick Inner / Outer 2MM / 1.5MM
    Agitator RPM/Number 21/1
    Insulation Density 40KG/CU.M
    Thickness of Insulation 50 MM
    Make of compressor Emerson Copeland
    Model of Compressor CR-22/CR-22/CR-36
    Temp Range Considered 35->4C
    Power requirement Single/Three Phase

    Bulk Milk Cooler 2000/3000/5000 LTR



    Description

    ( 300 LTR/ 500 LTR/ 1000 LTR )

    Particulars 2000/3000/5000 LTR
    Gross Capacity 2200/3200/5200 LTR
    Rated capacity 2000/3000/5000 LTR
    Thermo Plate Imported
    Construction material AISI 304 SS
    S. Thick Inner / Outer 2MM / 1.5MM
    Agitator RPM/Number 21/1
    Insulation Density 40KG/CU.M
    Thickness of Insulation 50 MM
    Make of compressor Emerson Copeland Complete KIT
    (Made in Canada)
    Type of Condensing Unit 5 ton/ 3 ton each/ 3 ton each
    No. of Condensing Unit 1/2/4
    Model of Compressor 572
    Cooling Capacity  30240 Kcl/hour
    Type of Refrigerant  R-22
    Ambient Tem As per ISO 5708 II A
     Maximum cooling time  3.0 hours
    Temp Range Considered 35->4C
    Power requirement Three Phase
    Connected Load 13040 watts

    We offer closed type bulk milk coolers ensuring better performance. We are leading in manufacturing and delivering the best quality coolers that have durability and best performance.

    Our milk coolers are made from high-quality stainless steel that is easy to maintain and use. Our uniquely designed coolers are in high demand in the industry and are installed in the dairy farms. We have a long tail of the clients all over India as we are well known for the availability of coolers with different capacities with various configurations.

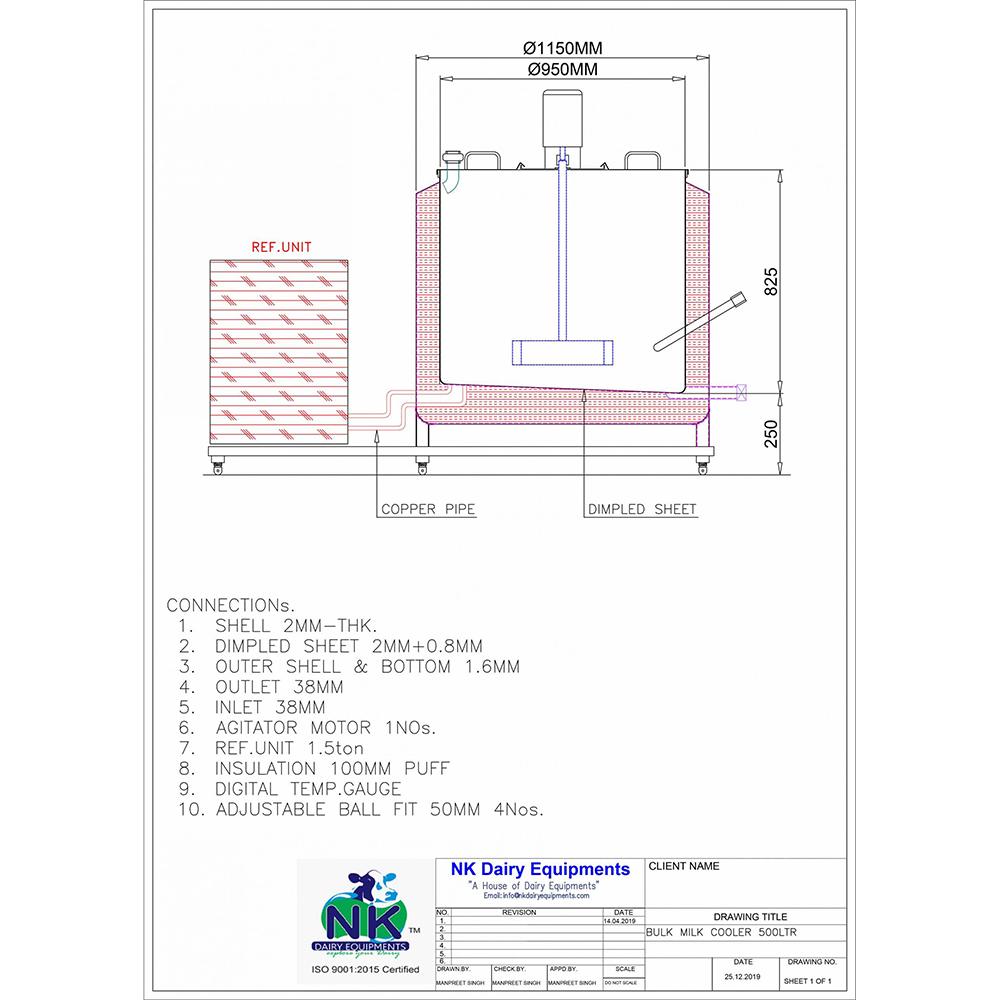

    These coolers have the large opening lids for free access and rounded internal corners to facilitate easy cleaning. Tank insulation provided by factory injected polyurethane foam of 50mm and integral condensing unit of hermetic type with R22 refrigerant. As these coolers are designed uniquely to occupy the minimum space with the beneath installed condensing unit

    Specific features

    • Low maintenance and running cost
    • Maintain the hygiene conditions of milk
    • Agitator and cooling on/off switch
    • Digital temp display
    • 350c -400c within 3 hours for 1st milking
    • 100c – 400c within 1.5 hours for 2nd milking
    • Two milking tank design
    • All SS 304

    Types of milk coolers

    1. Bulk MILK COOLERS (BMC)- 300 LTR
    2. BULK MILK COOLERS 500 LTR
    3. BULK MILK COOLERS -1000 LTR
    4. BULK MILK COOLERS- 3000 LTR
    5. BULK MILK COOLERS- 5000 LTR

    Prices of BMC

    We manufacture and supply the milk coolers that give the cost advantage to the clients as our durable designs are offered at reasonable prices.

    BMC is supplied at different prices according to the capacity and shape as per the requirements of the clients. We ensure standardized quality designs at pocket-friendly prices.

    Contact for more information on prices of BMC
